BTU Pyramax

BTU Convection Reflow Oven

BTU’s Pyramax™ family of products is backed by its industry leading comprehensive warranty:

  • Lifetime on heaters and blowers
  • 3 years system
  • 1 year labor

Find out more

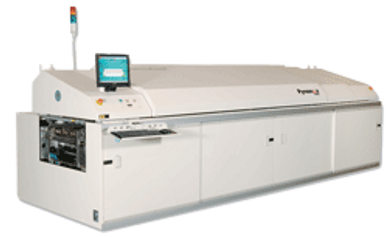

BTU Pyramax

With 6, 8, 10 and 12-zone air or nitrogen models, 350oC maximum temperature and a comprehensive menu of options, Pyramax™ reflow ovens are the industry’s most versatile performers and best value.

Pyramax Vacuum

The Pyramax Vacuum reflow oven has been designed with the requirements of large EMS/high-volume automotive customers in mind. The unit is configured with 10 zones of closed-loop convection heating and a maximum production width of 457 x 457mm (18 x 18 inches) inches under vacuum operation. Nitrogen atmosphere capable, the Pyramax Vacuum reflow oven offers a maximum process temperature of 350° C.

Find out more

Controlled Atmosphere Advanced Thermal Solutions

BTU’s controlled atmosphere belt furnaces are available with temperature ranges up to 1800°C and with various process atmospheres including hydrogen, nitrogen and argon.

Thermal Solutions Applications

Brazing | Glass-to-Metal Sealing | LTCC | Direct Copper Bonding
Thick Film | Sintering | Diffusion | Advanced Ceramics | Solar Cell
Powder Processing | Curing | Drying
